433.92 MHz RF LED Strip Controller , Wifi Led Rgb Controller For Strip Lighting

Led Strip Controller DC12-24V 5A/4CH 2.4GHz RF wireless Remote For CW/NW Strip

M series LED controller is compatible with 8 kinds remotes of different function (patent technology).

which means using one receiver could experience single color/CT dimming , RGB/RGBW adjustment to meet customer' different lighting requirements. With the RF remote, speed/brightness adjustment. customise color and lighting changing modes selection could all be achieved

1.Parameter:

Remote(CT):

• Model:M2
• Working Voltage:3V DC(battery CR2032)
• Working Frequency:433.92MHz
• Remote Distance:30m
• Working Temp:-30℃-55℃
• Weight(N.W):42g

CV Receiver(CT):

• Model:M4-5A
• Input Voltage:5-24V DC
• Max Current Load:5A×4CH  Max 20A
• Max Output Power: 100W/240W/480W(5V/12V/24V)
• Working Temp:-30℃-55℃
• weight(N.W):125g

3. The Learning ID Method of Remote Control:

Remote control has been matched to the receiver before leave factory, if deleted accidentally, you

can learn ID as follow.

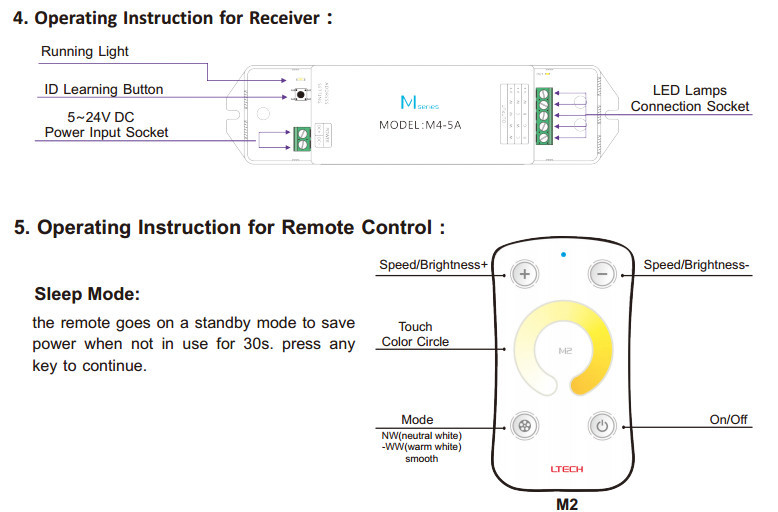

Learning ID: Short press ID learning button on the M4-5A receiver, the running light is on, then

                       press any key on the M2 remote control, the running light flashes several times,

                       activated.

Cancel ID: Long press ID learning button on the M4-5A receiver for 5 seconds.

Attn: one receiver can be matched with max 10 same or different kinds remote.
